The Ultimate Enduro Candle Guide: Understand everything to no longer stay in harbour
In the endurist’s toolbox, it is an inexpensive piece (often less than €10 for standard models), which nevertheless has absolute power over your driving day: the spark plug. It is she who can turn an epic outing into a long, desperate stroller session at the bottom of a valley.
Between the barbaric references that look like secret codes (BR8EG, BPR7EIX, GR7CI-8), the jungle of marketing promises around Iridium and the intricacies of colour ‘reading’ to adjust its carburation, it is easy to get lost. Should we give in to the sirens of the high-end? How to interpret signs of weakness? And above all, how to resurrect a candle drowned in the forest? Freenduro breaks myths and delivers technical expertise without a wooden tongue.
1. The anatomy of a candle: how does it work?
To put it simply, the candle is the "briquet" of your engine. It must create a spark capable of igniting the compressed air/petrol mixture in the cylinder thousands of times per minute under extreme pressure and temperature conditions.
However, its role does not end there. It is also a crucial heat sink. The candle must drain some of the heat from the combustion to the cylinder head to prevent the engine from overheating. It must be understood that a candle does not improve gross performance: it must first and foremost function in a Optimal thermal window, between 500 and 800 °C. Below that, it fails to self-clean and become clogged. Beyond that, it turns into an incandescent hot spot, which can cause a fatal pre-ignition for the engine, especially at high speeds (10,000 to 14,000 rpm).
It is this dual function (spark + heat dissipation) that makes the choice of the right candle so critical, especially in enduro where engine speeds constantly vary between the slow ‘trialiser’ and the deep ‘right ends’ of six.
2. Decode your candle: the Secret Language of References (NGK)
The vast majority of modern (and older) enduro motorcycles are equipped with NGK candles. In the field, we are not talking about “candle for 300 EXC”, but about “BR8EG”. Knowing how to decrypt these codes is your best assurance against an error that could prove fatal for your high engine. Before buying, you must check 5 compatibility points: diameter/no thread, length (reach), type of seat (plate with joint or conical), presence of resistance and thermal index.
- Diameter and threading (e.g. B or C): the first letter indicates the diameter of the cap. A “B” means 14 mm, while a “C” often indicates a smaller thread of 10 mm. If you are wrong here, the candle will simply not screw into the cylinder head, or worse, you will screw the thread of the latter (an expensive repair in perspective).
- Built-in resistance (e.g. R): The presence of an “R” (for Resistor) has become almost mandatory on modern motorcycles equipped with complex electronic ignition (CDI) or injection (TBI/TPI). This internal resistance limits and filters electrical parasites that could disrupt the sensors and the motor calculator, causing ignition failures or erratic injection behaviour.
- The thermal index: THE critical point in enduro (the number, e.g. 7, 8, 9) :
This is the most important information for your engine. The thermal index defines the rate at which the candle discharges heat. At NGK, the higher the number, the more the candle is said to be “cold“. The lower it is, the more it is “warm“.
- ‘Cold’ candle (high index, e.g. 9) : it has a short insulating spout and very quickly removes heat to the cylinder head. It is essential for high-performance engines, which heat a lot, or during fast and intensive rolling (such as in sand) to avoid self-ignition (the mixture ignites before the spark due to the heat of the candle), which can pierce a piston in seconds.
- Hot candle (low index, e.g. 7) : It has a long insulating spout and retains its heat for longer. This allows it to reach its self-cleaning temperature (approximately 500°C) faster to burn carbon and oil deposits. It is ideal for slow, ‘trialising’ crossings, where the engine takes few laps and risks clogging the candle.
In enduro, an 8 index is often the standard compromise. The rule is to stay on the original index (manufacturer’s recommendation) en absence of symptomss. However, if you do a lot of slow technique, a 7-index candle can help avoid fouling. If you drive in the desert or in a fast “special”, an index 9 offers a thermal safety margin. Never change the index by more than one notch, and only if the reading of your candle justifies it.
- The length of the cap (Reach) (ex: (E): An “E” indicates a long cap (19 mm). If your engine requires a short candle (H) and you mount a long one (E), the electrode will protrude too much into the combustion chamber and the piston will hit it at the top dead point. This is the Immediate destruction of the insured engine. Conversely, a candle that is too short will move the spark away from its optimal position, severely degrading combustion.
3. 2T candles vs 4T candles: radically different constraints
Although the thread may sometimes seem the same between two spark plugs, the internal stresses of a 2T (mixed) engine and a 4T (valve) engine are the opposite of each other.
The ‘Projected’ electrode trap (the famous ‘P’)
You will sometimes see references containing a P (as BPR8ES). This ‘P’ stands for ‘Projected Insulator’. The central electrode goes further out of the cap to fetch the spark further into the combustion chamber.
- On a modern 4-stroke: This is often the norm for optimising flame front propagation and improving efficiency.
- Over a 2-stroke period: THIS IS PROHIBITED. Unless your user manual explicitly specifies it (very rare), a "P" candle will have its electrode struck by the piston when it is reassembled. The consequences are disastrous: pierced piston, debris in the lower engine, twisted rod. NEVER mount a 4-stroke candle in a 2-stroke without checking this crucial detail.
Ignition frequency and fouling
A 2-stroke triggers a spark at each round engine, against one lap out of two for the 4-stroke. The 2T candle works twice as hard and must remove the residues of mixing oil. It is also for this reason that in 2T, long periods of idling to heat the bike are often the cause of immediate fouling and a black candle even before entering the track. A car or mower candle in your 300 EXC will hold 10 minutes before "pearling".
4. Candle iridium vs standard candle
Let us be clear and honest: Mounting an Iridium candle won't turn your 125 into 300. You won't win a single horse-steam. The candle is an ignition device, not a fuel injector. If your carburetor is misadjusted or your engine tired, a $25 candle won't do any miracles. Sound The main advantage lies in the regularity of the spark and its resistance to wear.
So why do Beta and KTM TPI/TBI use it originally?
Some prestige brands like beta (on Racing and Xtrainer models for years) or the group KTM (on its modern 2T with TPI and TBI injection) deliver their motorcycles with Iridium (e.g.: NGK GR7CI-8 or ZGR7GI-13G). And it is not for the pleasure of making you pay more for spare parts. There are real technical reasons for this, which are crucial in enduro:
- A more “powerful” and concentrated spark: the fineness of the Iridium electrode makes it possible to concentrate electrical energy at a specific point. This requires less voltage to the ignition coil to “shake” the spark. This is a valuable asset for difficult cold kick starts, or if your battery is weak.
- Idle stability and low speeds: As the spark is more stable, it ignites the mixture more constantly. This is what gives the Beta such stable idling and legendary engine roundness, which is crucial in order not to stall in the middle of a complex crossing area.
- Better resistance to fouling: in theory, the concentration of the spark helps to “burn” oil and carbon deposits at low speeds, thus avoiding the famous 2-stroke cracking.
- Anti-pollution standards: by ensuring a more complete and stable combustion, iridium helps modern 2T engines to pass the increasingly drastic Euro5 standards.
- Longevity over modern 4-times: Since access to the candle is often laborious, its longer lifespan avoids too frequent interventions.
The Freenduro verdict: If your motorcycle is running perfectly with standard candles (EG/ES) and you are mostly in leisure driving, iridium is an unnecessary luxury. On the other hand, if you own a recent injection bike (TPI/TBI) or if you practice extreme enduro where idle stability and ease of restart in impossible positions are vital, Iridium is a worthwhile safety investment. Note, however, that in cross 2T, where the candle is often used as a setting indicator, the Iridium is not always economically relevant if you change it regularly.
5. Diagnosis: What does the color of your candle say?
Dismantling your candle immediately after a rolling session is the most reliable diagnosis for adjusting your carburetion (or checking your injection). Look carefully the colour of the porcelain surrounding the central electrode :
- Milk chocolate colour: This is the Grail of the Endurist! Your air/gasoline mix is perfect. Don't touch anything.
- Black, greasy and wet: This is a sign of too rich a mixture (too much petrol) or too much blending oil. The engine ‘turns greasy’, gets clogged and may ‘shake’ the candle incessantly. Solutions: reduce the main sprinkler, lower the needle or reduce the percentage of oil (if at carbu). On the road or in soft use, a black candle may simply mean that the engine does not reach its operating temperature.
- White, dry and chalky: DANGER! Your mixture is too poor (too much air, not enough petrol). The engine overheats, the risk of detonation and tightening (bottoming piston) is imminent. Solutions: increase the main nozzle immediately or raise the needle. Do not open the gas handle thoroughly until it is set.
6. Tips: assembly, transport and survival
Before unscrewing, clean the area around the candle well to prevent dirt from falling into the cylinder. NEVER mount a "dry" candle in your cylinder head. The cylinder head of your motorcycle is aluminum, the cap of the candle is steel. With extreme heating cycles and mud, these two metals can be welded (galvanic corrosion).
Assembly: Always operate cold motor. Hire the first threads manually to prevent damage to the screw pitch, then apply a consistent and measured tightening without forcing into the aluminium to “be safe”, at the risk of pulling the thread out.
The trick: A small net of Copper grease high temperature on the thread of the bougie allows easy disassembly, even after 50 hours of intensive driving, and saves the threads of your cylinder head (a screwed cylinder head is often €200+).
A spare candle hanging at the bottom of the banana or backpack, in the middle of the 10 keys, spare levers and tire disassemblers, is a candle that will probably be dead before it is even used. Ceramic porcelain is extremely fragile; the slightest internal crack (invisible to the naked eye) will cause the spark to leak and the candle will be HS.

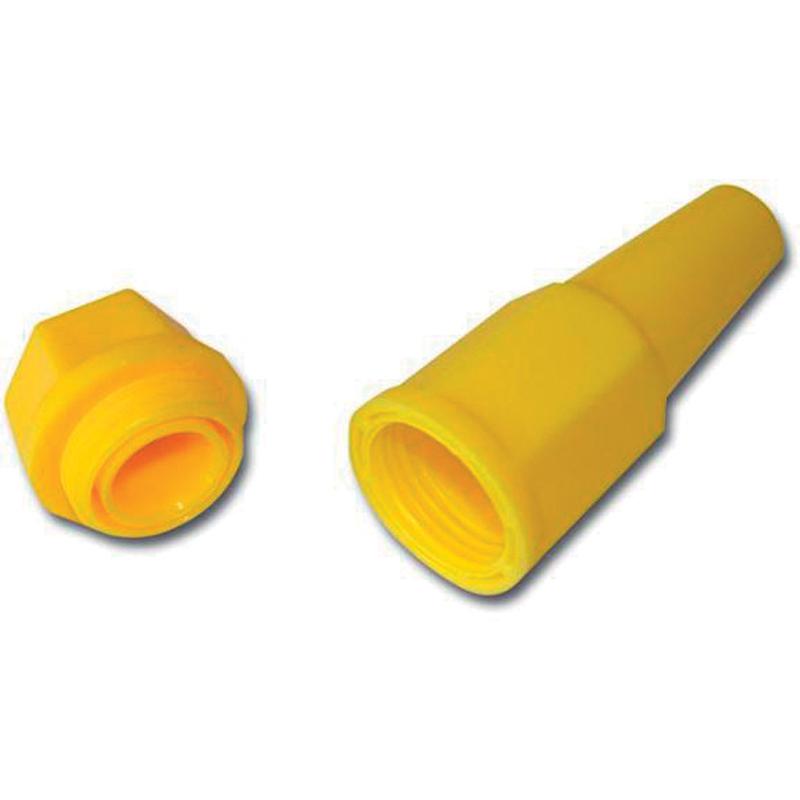

The trick: invest a few euros in a Rigid Candle Holder and waterproof. It is this €5 accessory that will save you from a desperate stroller session in the middle of nowhere.
In 2T (motocross or enduro), it is often said that a candle ‘slaps’. In reality, it is very rarely broken physically. She's just drowned (covered with a conductive film of petrol and unburned oil). The spark, rather than jumping between the electrodes, leaks through this greasy film to the mass.
The survival method to avoid walking home:
1. Dismantle the drowned candle.
2. Dry it vigorously with a clean cloth (or your jersey if it is dry).
3. If you have a lighter (necessary in the banana!), burn the oil residues with a flame on the electrodes. Be careful not to overheat the ceramics. (Do it away from the bike to avoid ignition – it happens faster than you think …)
4. Brush very gently with a small metal brush (attention: if it is an Iridium candle, DO NOT use an aggressive metal brush, you would break the thin central electrode!).
Frequently asked questions: all you need to know about the motorcycle candle
- How can I be sure that a candle is compatible without the exact reference? Consult the manufacturer’s manual, check the diameter, the thread length (reach), the type of seat, the need for resistance (R) and the thermal index.
- Can I change the thermal index to solve my fouling problems? Only at the margin, i.e. by a notch at most, and only if the symptoms are real and the candle reading is obvious. Don't play apprentice wizards.
- Does Iridium increase the power of my motorcycle? No, the contribution is in spark stability and durability, not in gross performance.
- What are the precautions to avoid damaging the thread of the cylinder head? Always operate on a cold motor, make sure the area is clean, manually engage the candle at the beginning, and tighten without excess, preferably torque.
Conclusion: Do not neglect the heart of your ignition
The candle is much more than just a piece of metal and ceramic. It is the heart of your ignition, the guarantor of the reliability of your engine and the justice of the peace of your carburetor. Do not neglect its quality, do not fall into the trap of the universal "tuning" candle, and scrupulously respect the recommendations of your manufacturer.
Whether you are “Team Standard” for simplicity and price, or “Team Iridium” for stability and peace of mind when crossing, only one rule prevails: make sure you always have a new one, a good thermal index, and above all, protected in a candle holder at the bottom of your bag!
And you, what reference do you use on your bike and what is your trick not to stay in the harbor? Tell us in comments!
